OpenSearch Dashboards Metric and Bucket Aggregations

A list of the supported metric and bucket aggregations for use in visualizations

This page lists the supported metric and bucket aggregations that can be used when creating aggregations for visualizations in OpenSearch Dashboards.

Supported Metric Aggregations

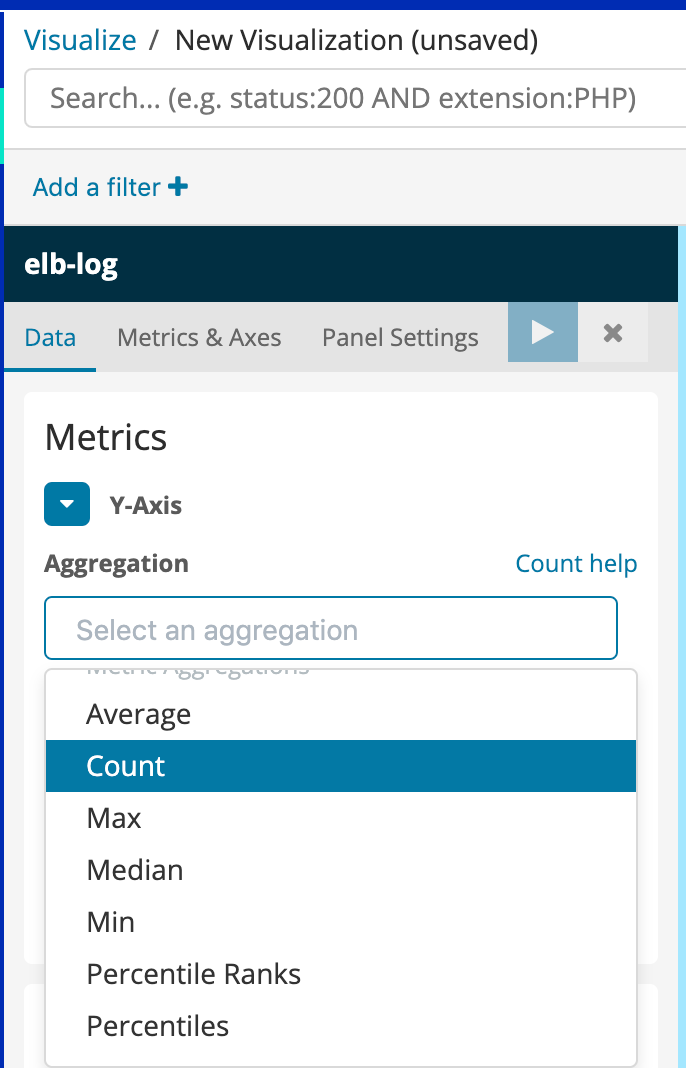

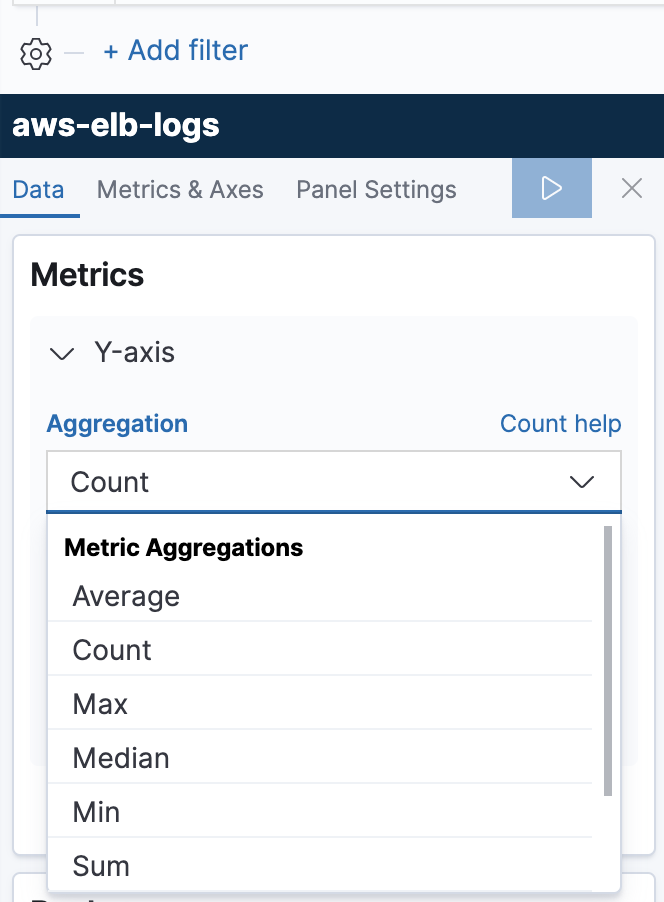

ChaosSearch users can build visualizations and dashboards that summarize data using the following metric aggregations:

Metric AggregationSupportedDescription
AverageYesThis aggregation returns the average of a numeric field. Select a field from the drop-down list.
CountYesThe count aggregation returns a raw count of the elements in the selected view.
MaxYesThe max aggregation returns the maximum value of a numeric field. Select a field from the drop-down list.
MinYesThe min aggregation returns the minimum value of a numeric field. Select a field from the drop-down list.
PercentilesYesThe percentiles aggregation returns the values for a range of percentiles. The default is [1, 5, 25, 50, 75, 95, 99], or you can specify a custom set of percentiles values in the range of 0 to 100.
SumYesThe sum aggregation returns the total sum of a numeric field. Select a field from the drop-down list.
Unique CountYesThe unique count (cardinality) aggregation returns the number of unique values in a field. Select a field from the drop-down list.

Supported Bucket Aggregations

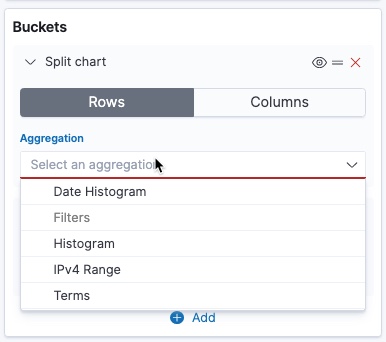

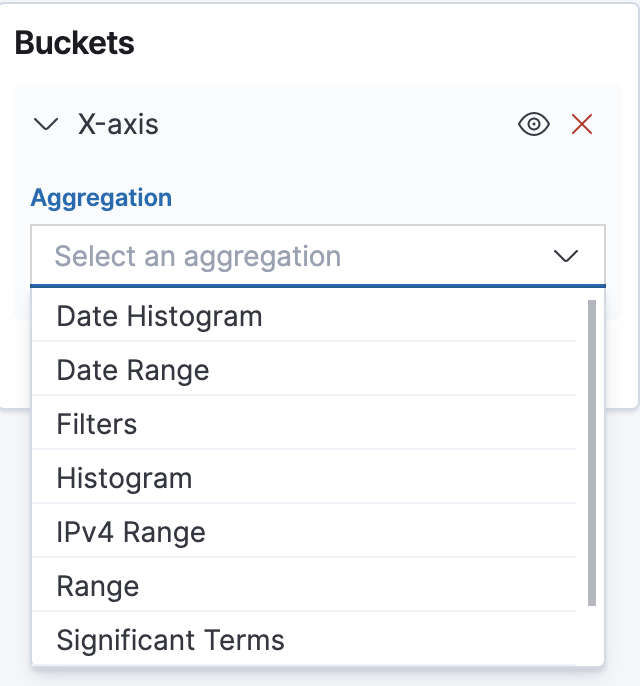

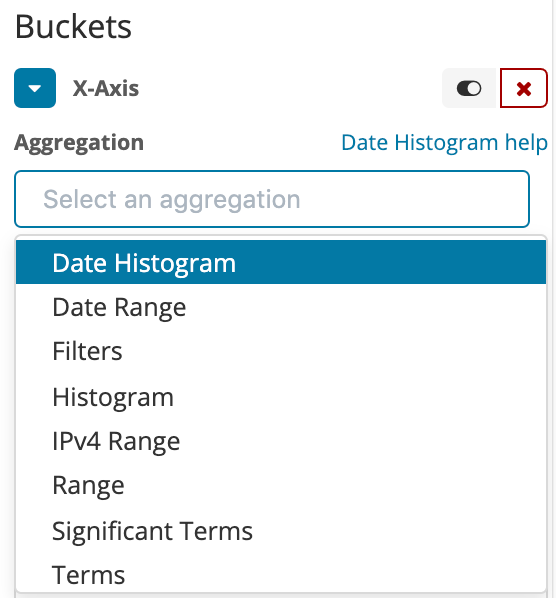

ChaosSearch users can build visualizations and dashboards that summarize data using the following bucket aggregations. Note that different bucket types are supported for each visualization type. After you select the visualization type, the available bucket aggregations are displayed in the Aggregation menu. This image represents only a partial list, specifically the types supported for tables.

AggregationSupportedDescription
Date HistogramYesA date histogram is built from a numeric field and organized by date. You can specify a time frame for the intervals in seconds, minutes, hours, days, weeks, months, or years. You can also specify a custom interval frame by selecting Custom as the interval and specifying a number and a time unit in the text field. Custom interval time units are s for seconds, m for minutes, h for hours, d for days, w for weeks, and y for years. Different units support different levels of precision, down to one second. Intervals are labeled at the start of the interval, using the date-key returned by Elasticsearch. For example, the tooltip for a monthly interval will show the first day of the month.
Date RangeYesA date range aggregation reports values that are within a range of dates that you specify. You can specify the ranges for the dates using date math expressions. Click Add Range to add a set of range endpoints. Click the red bucket symbol to remove a range.
FiltersYesA filters aggregation is a DQL query clause, exactly like a search query — match or term or range. You can use the Filters aggregation to narrow down the results to the specified query.

Note that nested JSON queries are not supported in Filters aggregations.
HistogramYesA standard histogram is built from a numeric field. Specify an integer interval for this field. Select the Show empty buckets checkbox to include empty intervals in the histogram.
IPv4 RangeYesThe IPv4 range aggregation enables you to specify ranges of IPv4 addresses. This aggregation applies only to view columns that use the Treat as IP materialization. Click Add Range to add a set of range endpoints. Click the red bucket symbol to remove a range.
RangeYesThe range aggregation enables the user to define a set of ranges, where each range represents a separate bucket. During the aggregation process, the values extracted from each document (matching index record) are compared to each bucket range and the matching records are included in the relevant/matching range.

Note that nested JSON queries are not supported in Range aggregations.
TermsYesA terms aggregation enables you to specify the top or bottom n elements of a given field to display, ordered by count or a custom metric.
Sub-bucketsYesAfter you define a bucket type aggregation, you can define sub-buckets to refine the visualization. Click + Add sub-buckets to define a sub-bucket, then choose Split Rows or Split Table, then select an aggregation from the list of types.
